High-Performance DMX Interfaces & Network Nodes by DMXking

New Zealand-based DMXking specializes in the design and manufacture of professional equipment for transmitting DMX512, Art-Net, sACN, and DMX-over-USB control signals. DMXking devices are renowned for their extreme reliability, ease of configuration, and complete compatibility with all leading lighting consoles and media servers. Offering high frame refresh rates and ultra-low latency, DMXking nodes have become an industry standard for rental, theatres, television studios, and architectural installations.

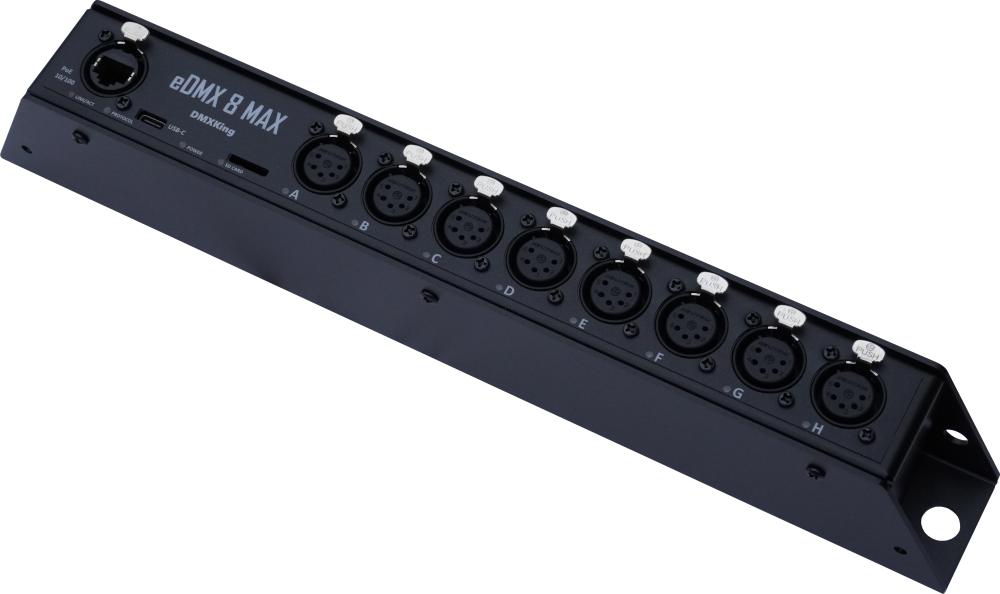

Flagship 8-port DMX King eDMX8 MAX interface in a rugged metal housing

"“Our philosophy is to build devices that operate flawlessly 24/7 under the toughest entertainment industry conditions. We make no compromises on port isolation and data rates, making professional control technology accessible to every lighting designer.”"

DMXking Network Nodes & Pixel Controllers

Superior Art-Net/sACN routing and direct SPI pixel control

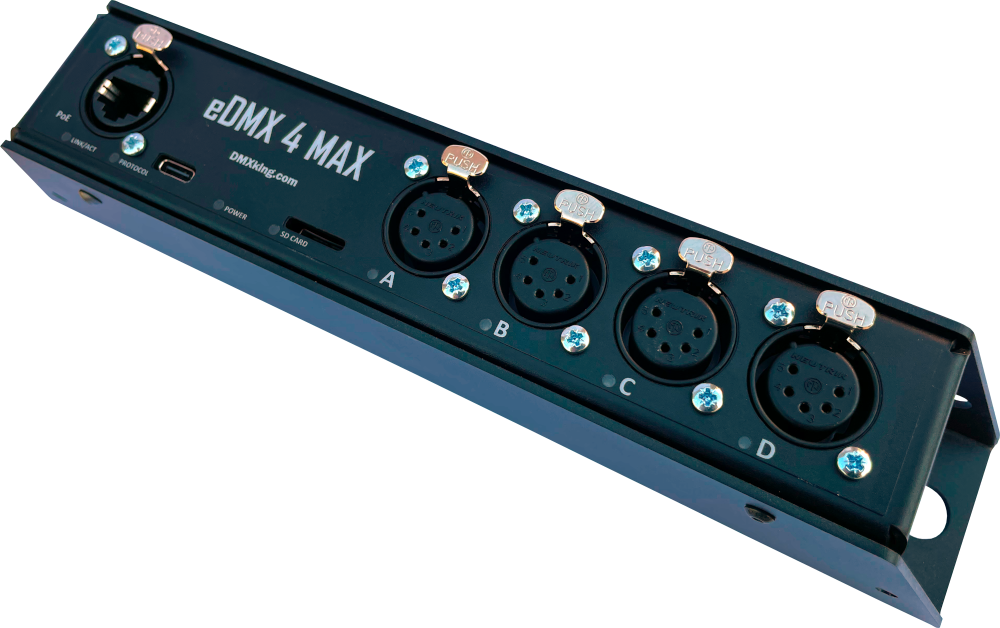

Compact 4-port eDMX4 MAX node with PoE support

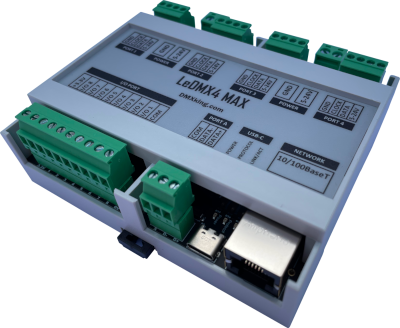

LeDMX4 MAX pixel controller for direct SPI control of LED strips

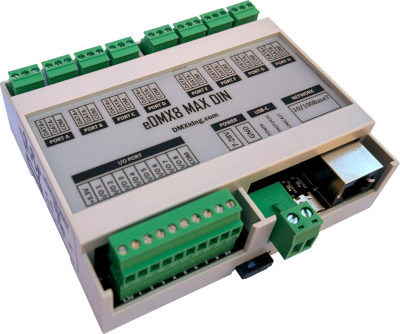

Professional 8-port eDMX8 MAX DIN node for DIN-rail mounting

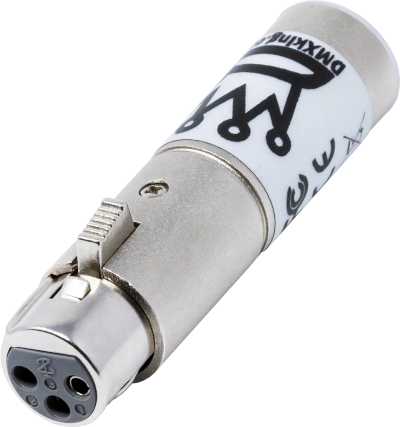

Portable ultraDMX MAX USB-DMX interface with USB-C connector and galvanic isolation

DIN-rail Series — Fixed Installation Nodes

Compact form factor designed for quick snap-on mounting onto standard 35mm DIN-rails.
Convenient screw terminal blocks for secure power distribution and DMX signal wiring.
Optional opto-galvanic isolation engineered for industrial and outdoor conditions (ISODIN models).
Seamlessly link multiple DIN units across a local network to scale out total DMX ports.
The ideal solution for architectural facade lighting, smart building setups, and fixed stage designs.

eDMX MAX Series — Ethernet-DMX Nodes

Full support for Art-Net 1/2/3/4 and sACN (ANSI E1.31) protocols.
Built-in stream merging options (HTP, LTP, Priority, or custom override).
Easily configured via the eDMX Configuration Utility or user-friendly web interface.
Galvanic isolation on every single port to protect upstream devices.
Powered via Power over Ethernet (PoE) 802.3af or external power input.
Support for DHCP, static IP assignment, and AutoIP auto-addressing.

LeDMX MAX Series — Pixel LED Controllers

Direct connection of pixel LED strips and panels without intermediate DMX-to-SPI decoders.
Native support for major SPI chipsets including WS2811, WS2812, APA102, SK6812, TLS3001, and more.
Drive hundreds of LED control universes with frame rates up to 44 Hz.
Independent selection of pixel type, color ordering (RGB, GRB, RGBW), and SPI clock rate per output.
Built-in test pattern engine for verifying connectivity without network sources.

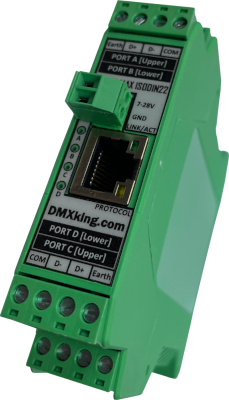

Isolated eDMX4 MAX ISODIN22 DMX node for reliable operation in industrial enclosures

Core Technical Advantages of DMXking Hardware

Full backward compatibility with USB DMX standards: Open DMX and ultraDMX protocols.
Straightforward firmware updates over Ethernet or USB ensuring future-proof functionality.
Cool-running, energy-efficient circuit design reducing heat stress on components.
Customizable DMX port timings to maintain compatibility with legacy lighting fixtures.
Bidirectional RDM (Remote Device Management) support for configuring fixture addresses remotely.
