CHAMSYS
GeNetix GW21

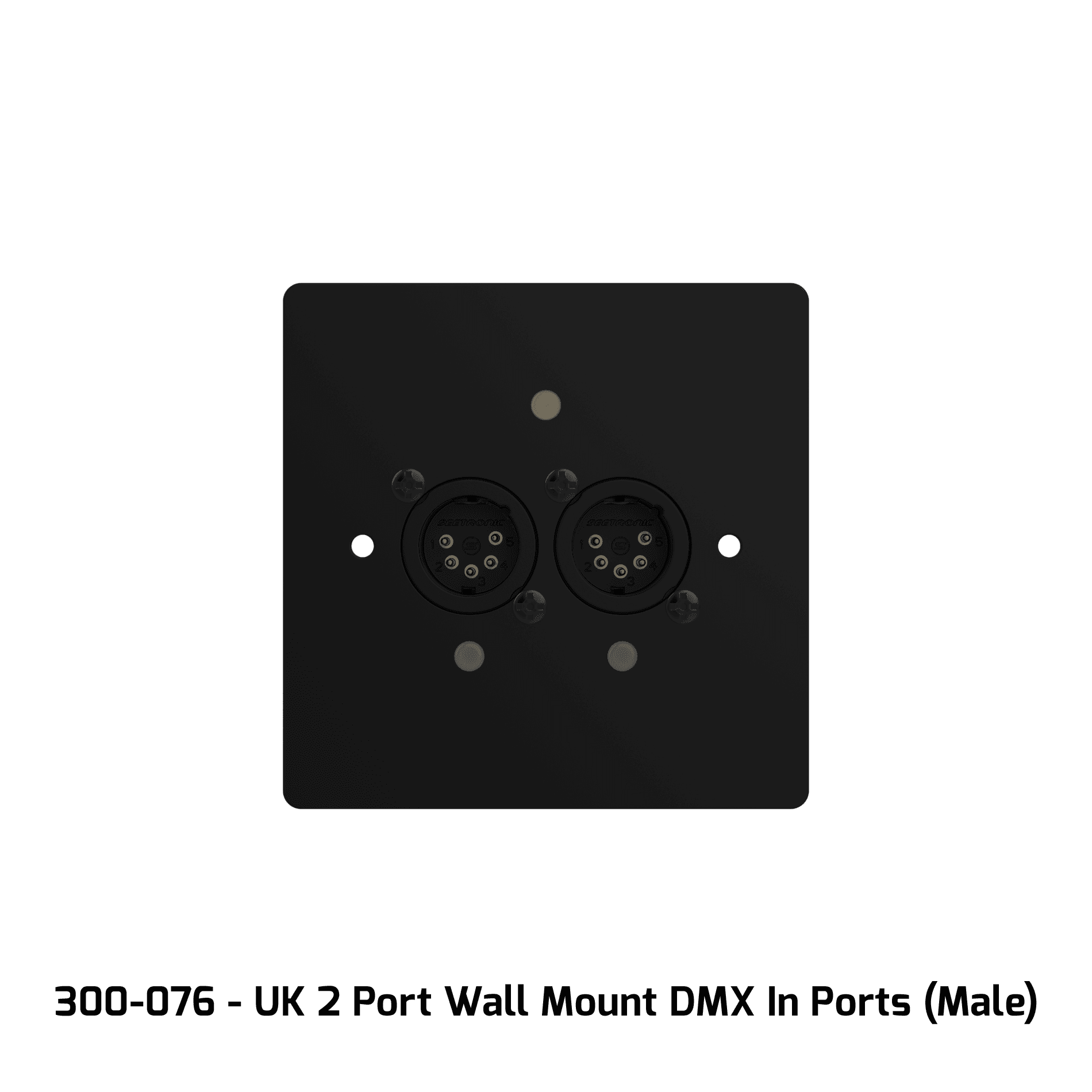

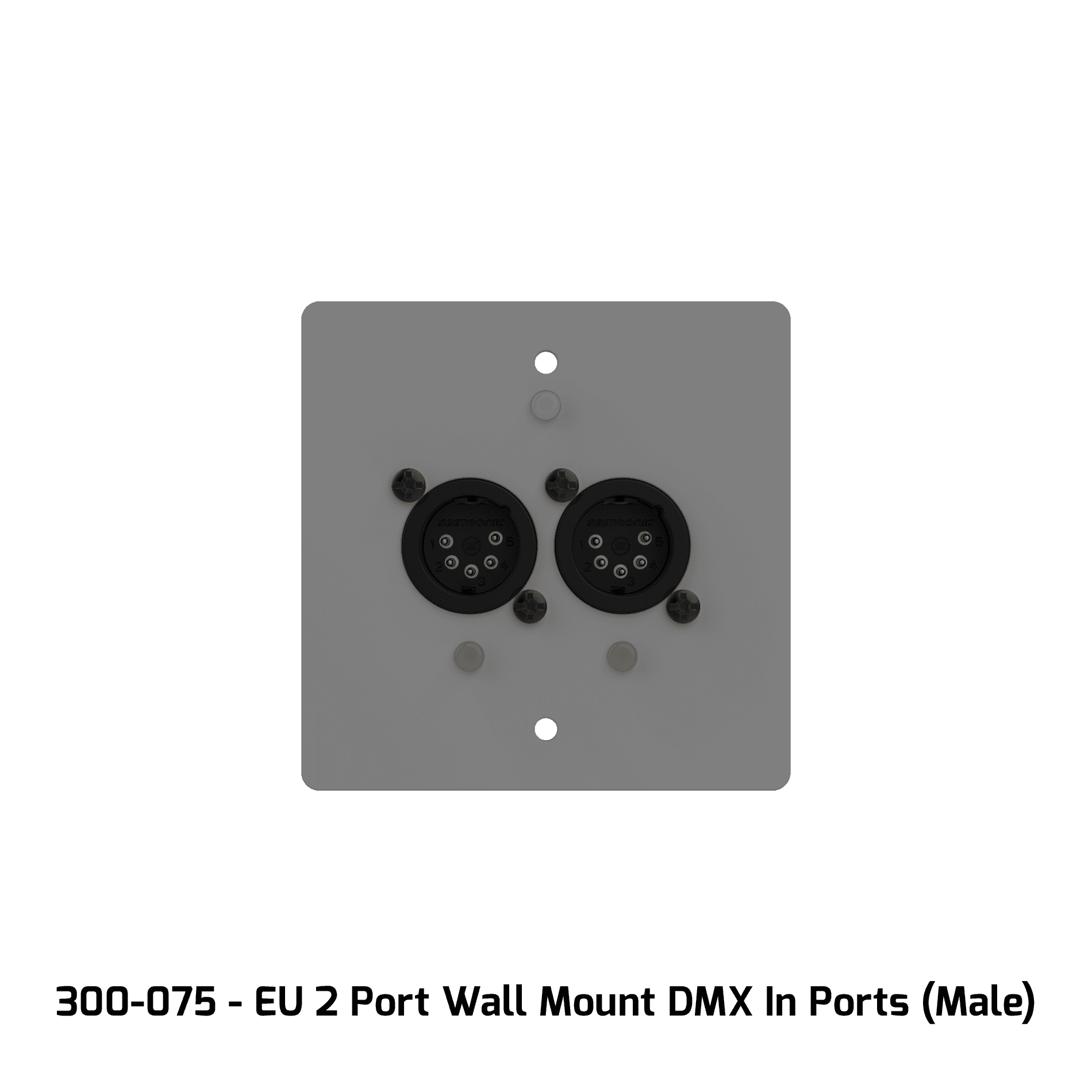

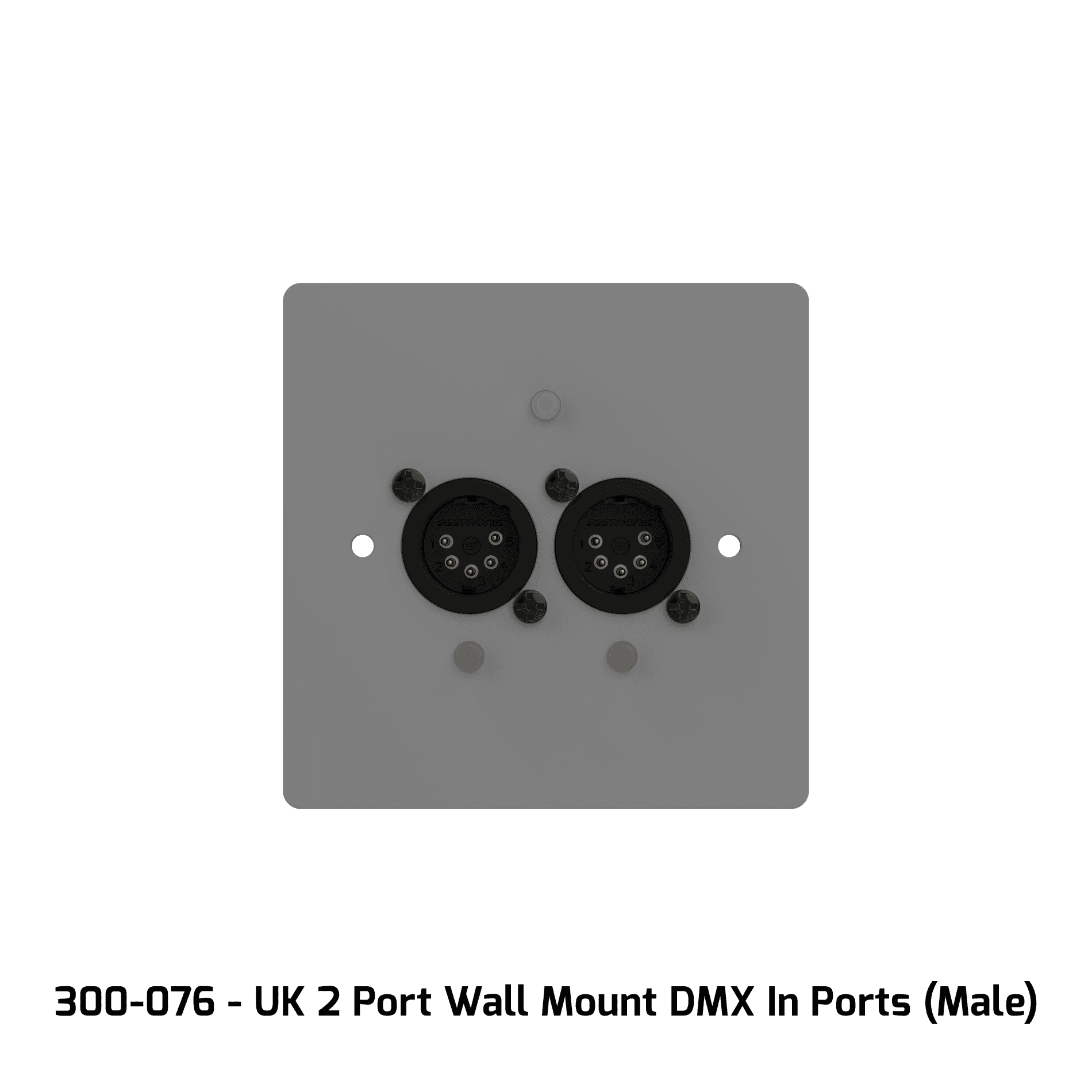

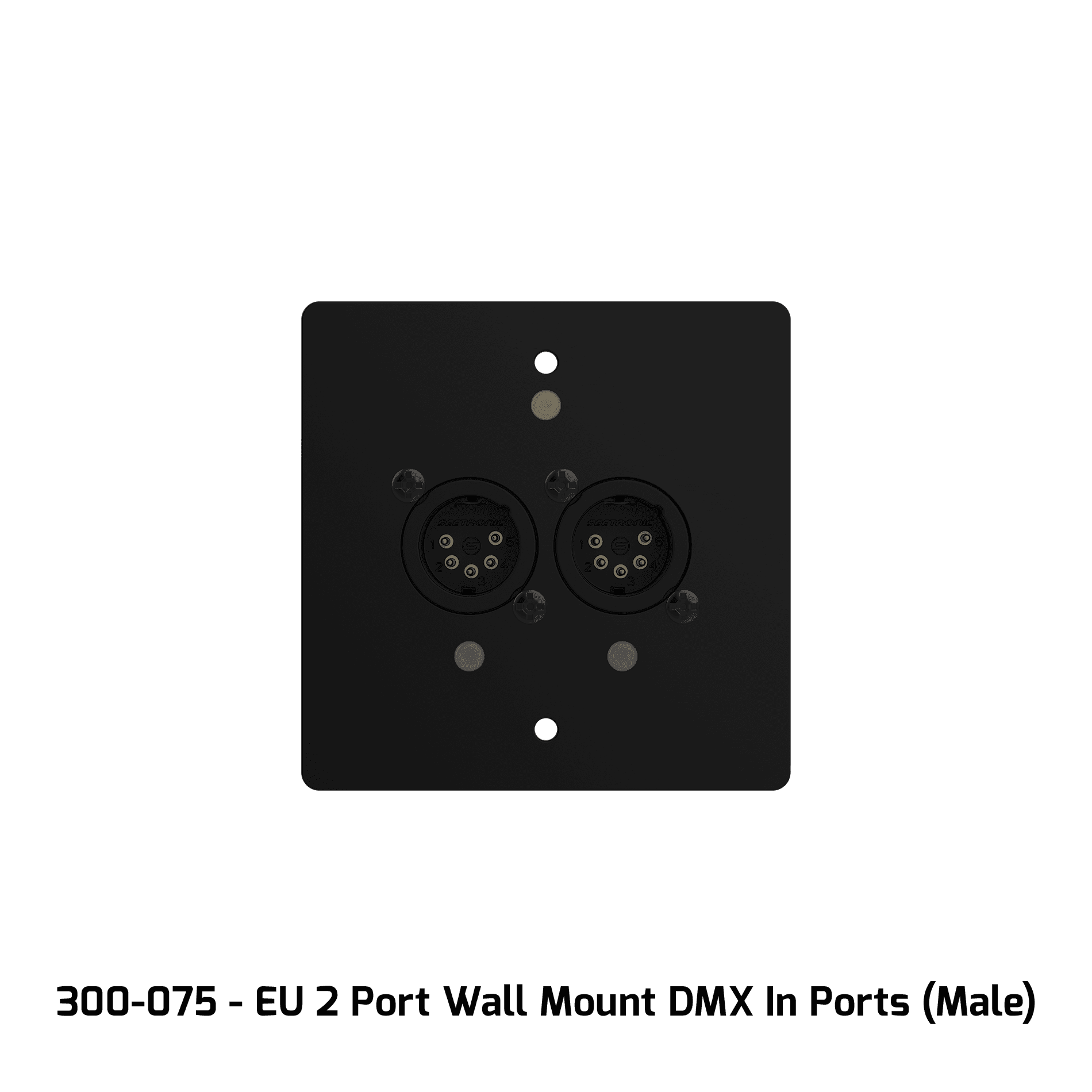

The GeNetix Wall Mount Node 2 is a compact, PoE-powered wall-mounted DMX node that provides convenient connection and control of lighting systems in fixed installations.
Full Product Description
The GeNetix Wall Mount Node 2 is a specialized network interface designed for wall mounting and integration into fixed lighting systems. It is compatible with standard European, American, and British-style mounting boxes, making it a versatile solution for various applications.
The device is equipped with two DMX ports that can function as either inputs or outputs, allowing for flexible system configuration to meet installation requirements. Options with different connector types are available, ensuring compatibility with various equipment.
Support for ArtNet and sACN protocols allows for easy integration of the unit into modern networked lighting control systems. Power over Ethernet (PoE) simplifies connection since it does not require a separate power source.
Configuration and control can be performed via ChamSys lighting consoles, through the built-in web interface, or over the network, ensuring maximum ease of use.
The GeNetix Wall Mount Node 2 is the ideal solution for theaters, conference rooms, studios, and other venues where a reliable and compact lighting control system is required.
Specifications
Parameter | Value |
|---|---|
Type | Wall-mounted network DMX node |
Number of DMX ports | 2 |
DMX ports | configurable as input or output |
Connector type | Male or female RDM Direct |
Protocols | Art Net sACN |
Power | PoE |
Management | Web interface Art Net console |
Installation | Standard mounting boxes EU US UK |
Application | Permanent installations |
Features | Compact design, easy installation |
