lumenradio

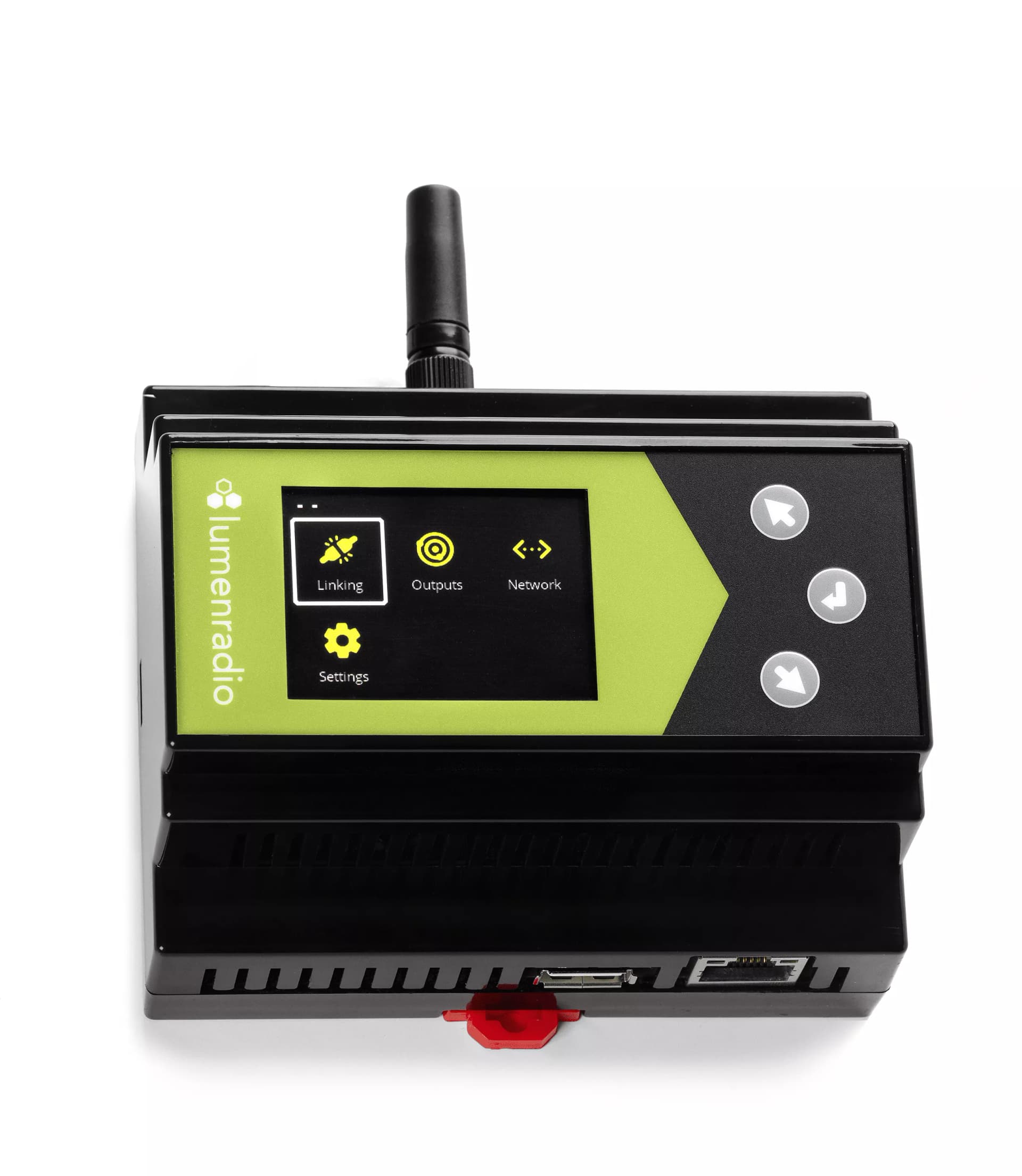

Galileo MAX
Galileo MAX makes architectural lighting projects easier and more affordable than ever before by offering wireless DMX in a modular, easy-to-install format.
Optical Specifications
Power supply: 12–24 V DC ±10%
Max. power consumption: 8.5 W
Self-resetting fuse: Yes
Nominal wire size: 0.2 – 1.5 mm², 24-16 AWG
IP rating: IP X0
Dimensions (W x H x D): 107 x 93 x 58.7 [mm]
Weight: 195 g
Antenna connector: RP-SMA
Operating temperature range: -20 to +55°C
Storage temperature range: -30 to +80°C
Humidity: 0–90% non-condensing
Frequency range: 2402 – 2480 MHz (ISM band), 5170 – 5330 MHz (ISM band), 5490 – 5590 MHz (ISM band)
Max. Transmit RF power: 100 mW (280 mW – US) at 2.4 GHz, 50 mW at 5 GHz
Supported protocols: Art-Net, Streaming ACN, RDM
Supported RF protocols: CRMX, CRMX2, W-DMX G3 and G4S
Ethernet: 10/100 Mbps via RJ45
connector PoE: IEEE 802.3af
USB: version 2.0 (for software updates only)
