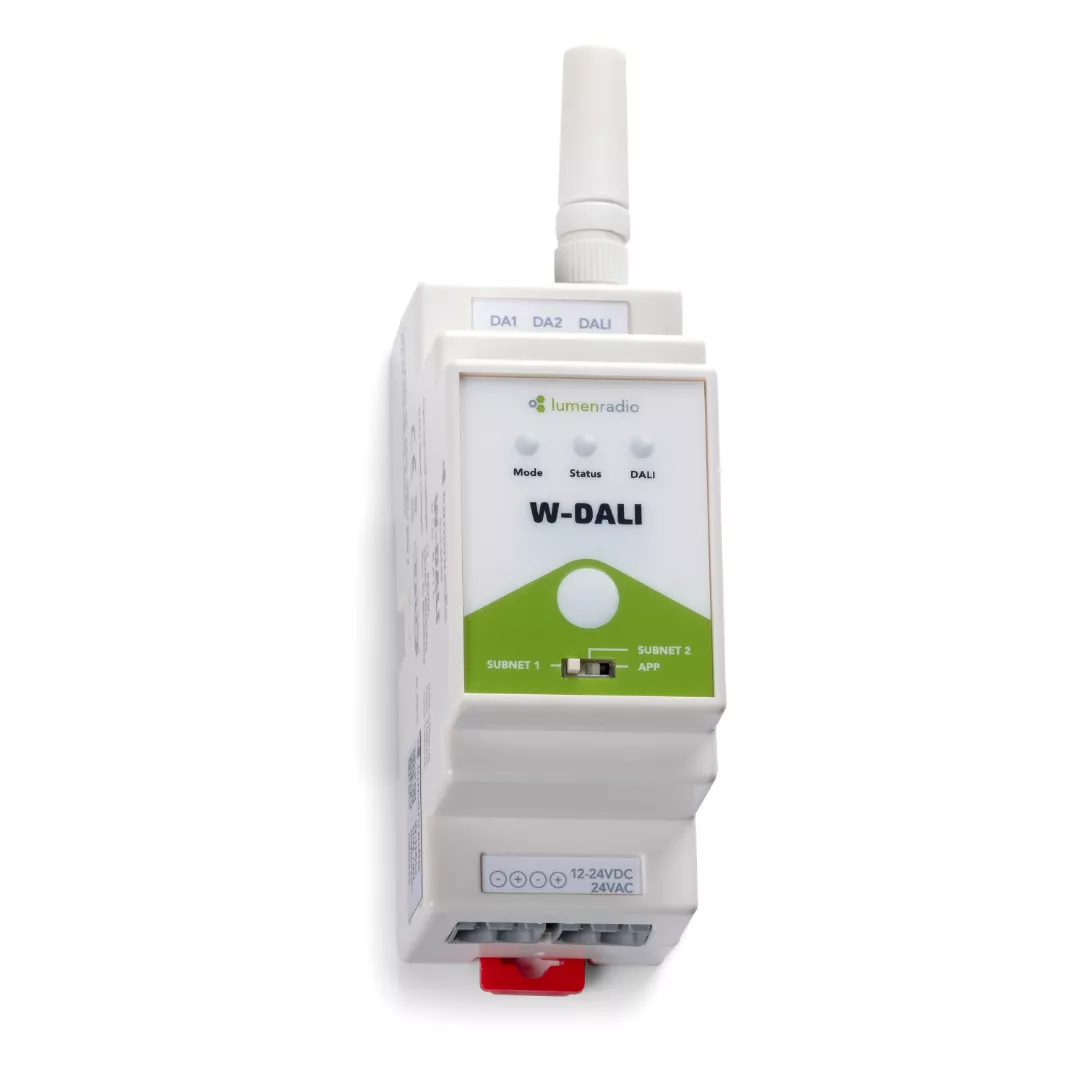

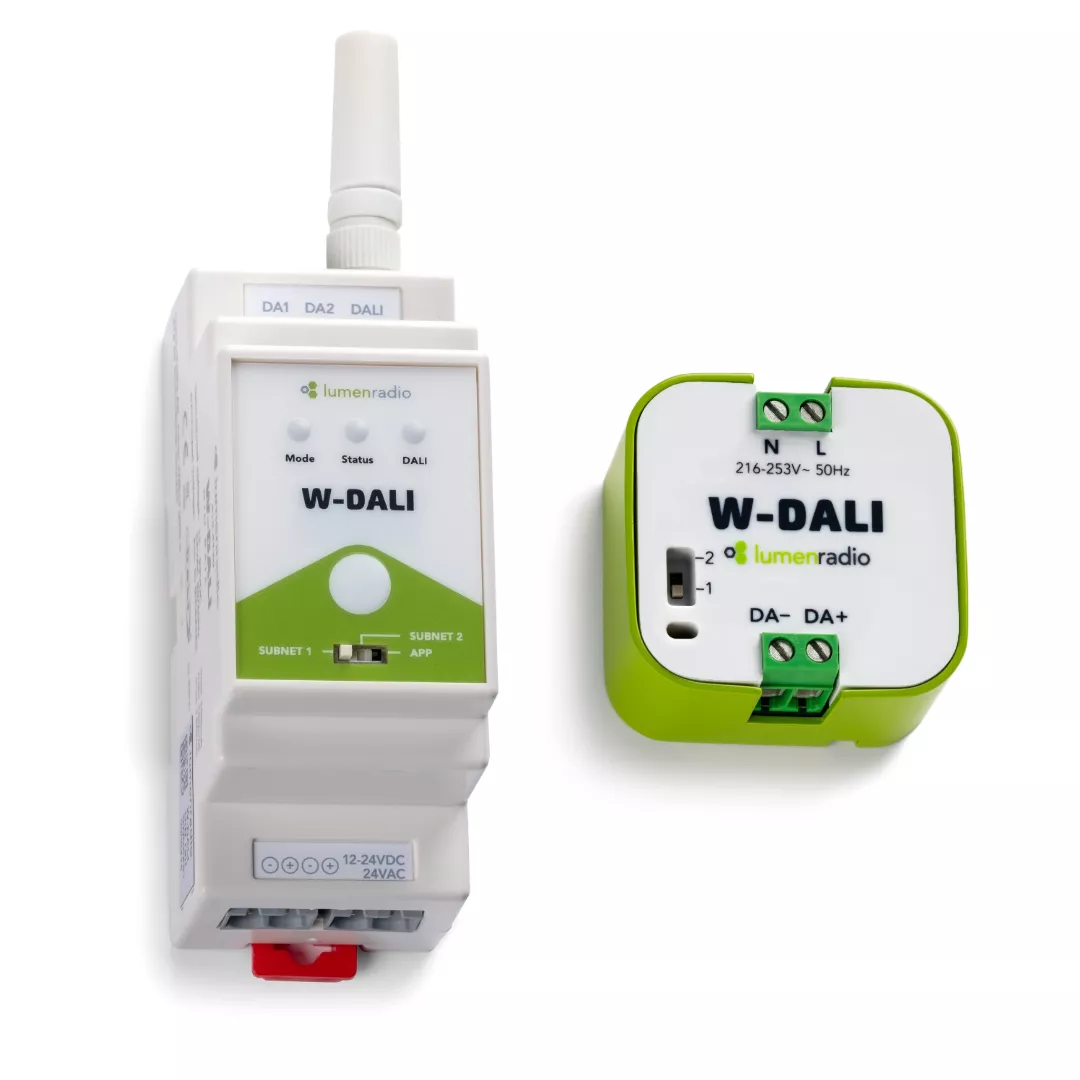

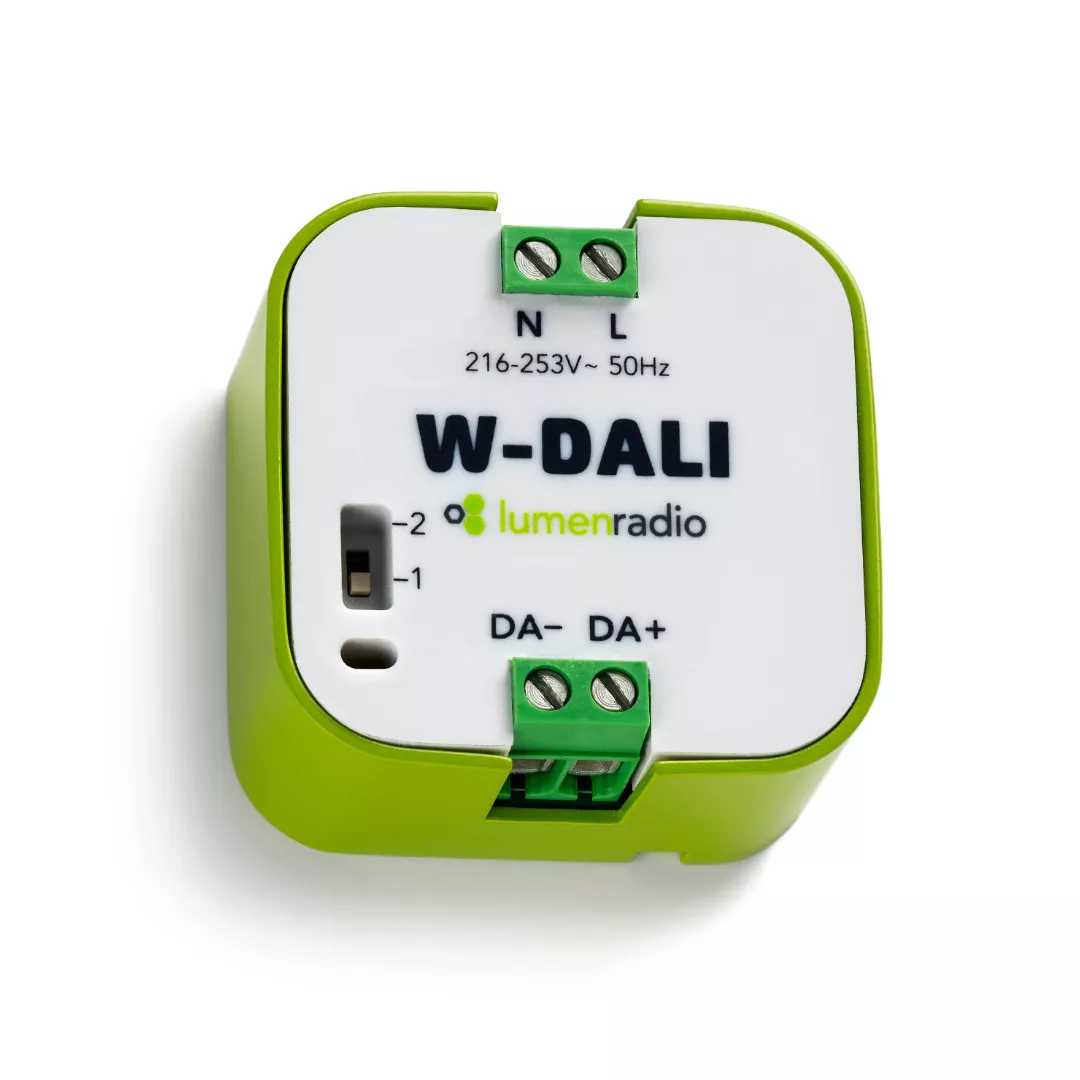

W-DALI

Without requiring major wiring changes or construction work, W-DALI provides you with an instant wireless lighting network. This reduces installation time, simplifies project planning, and allows contractors to take on projects in buildings where running new cables is simply not possible. The ability to complete more projects in less time means increased revenue and higher profits.

What wireless technology does W-DALI use?

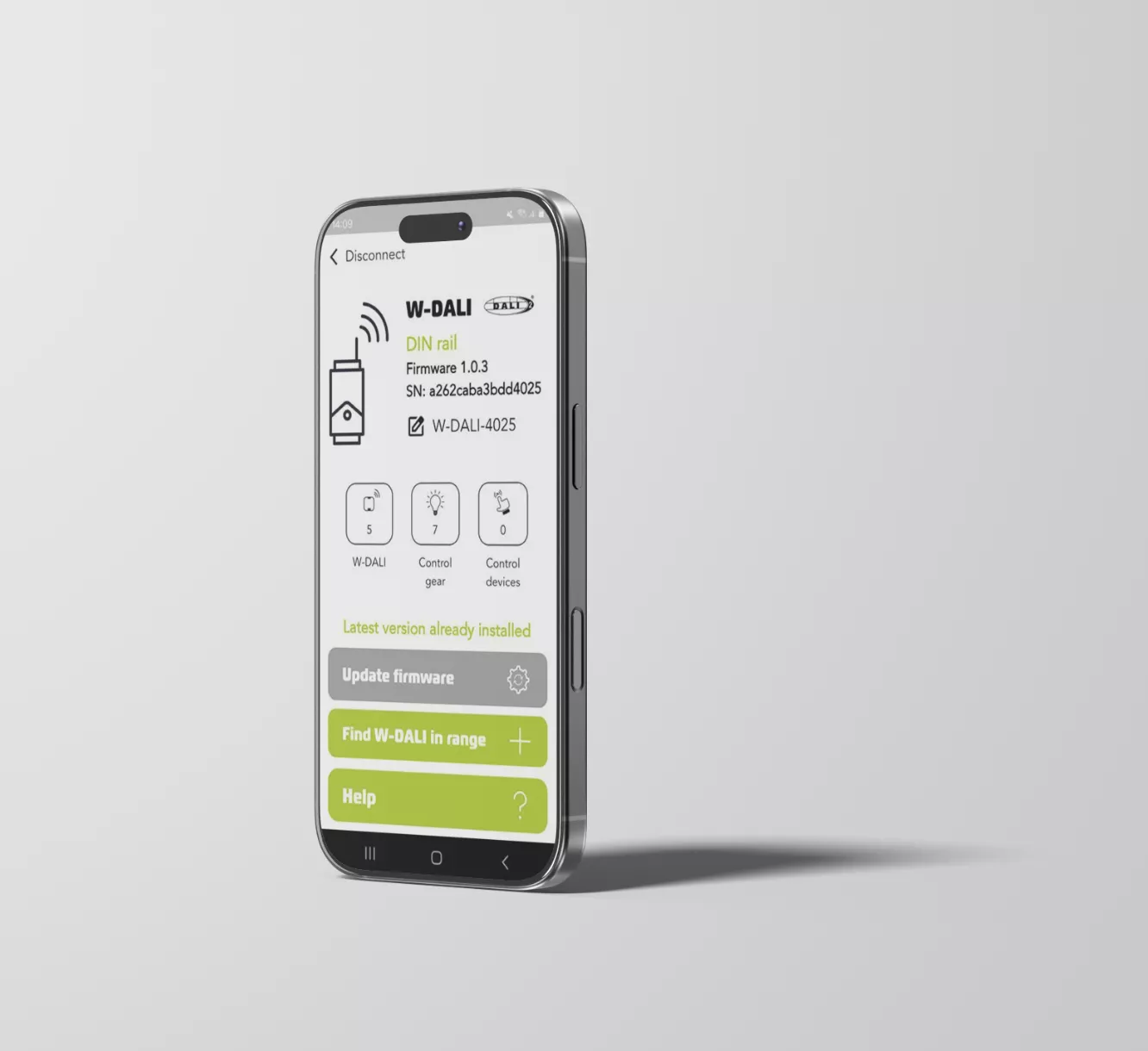

W-DALI uses LumenRadio’s patented, ultra-reliable MiraMesh wireless mesh technology (2.4 GHz) for communication between W-DALI devices. Check out our documentation to learn more about MiraMesh. W-DALI also uses Bluetooth Low Energy (BLE) to communicate with our mobile app.

Is W-DALI secure?
Yes, W-DALI uses AES-128 encryption for wireless communication.

What is the wireless range of W-DALI?
Up to 500 meters (line of sight) between two W-DALI mesh devices. The range will be shorter when used indoors, depending, for example, on the type of materials used in the building for walls and ceilings, as well as where and how the W-DALI devices are mounted. The W-DALI mesh network supports up to 8 mesh hops.

Technical Specifications

Voltage range: 216–253 VAC
Maximum power consumption: <1 W (with full load on the DALI power supply)
Frequency: 50 Hz
Current consumption: <5 mA
Conductor cross-section (stranded): 0.5–2.5 mm²
Conductor cross-section (solid): 0.5–4 mm²
